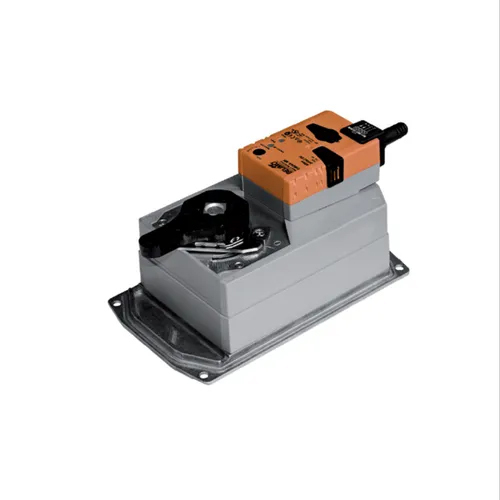

Belimo Sy2-230-3-t Rotary Actuators For Butterfly Valves

Name: Belimo Sy2-230-3-t Rotary Actuators For Butterfly Valves
Brand: The Refrigeration House
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Belimo Sy2-230-3-t Rotary Actuators For Butterfly Valves Specification

Mounting Type
Direct mounting

Efficiency
High

Operating Temperature
-30°C to +50°C

Insulation Material
Synthetic insulation

Power Factor
0.8

Feature
Spring return function

IP Rating
IP54

Humidity %
95% RH max, non-condensing

Shape
Rotary

Surface Finish
Powder coated

Connector Type
Cable gland connection

Overheating Protection
Integrated thermal protection

Product Type
Rotary Actuators

Application
Industrial

Protection Level
IP54

Frequency (MHz)
50/60 Hz

Rated Voltage
230 V AC

Energy Consumption
10 VA

Output Type
Rotary motion

Color
Orange

Dimension (L*W*H)
278 x 90 x 79 mm

Weight
5.5 kg

Warranty
Yes

Size
Suitable for valves up to DN 150

Input Voltage
230 V

Phase
Single Phase

Material
Aluminium alloy housing, Steel drive shaft

Connection Type
Screw terminal

No Of Poles
2

Running Time (motor)
150 s

Torque
20 Nm

Noise Level
<45 dB(A)

Control Signal
On/Off

Direction of Rotation
Selectable L/R

Drive Shaft Diameter
14 mm

Rotation Angle
95° (max)

Manual Override
With push button release

Ambient Storage Temperature
-40°C to +80°C

Belimo Sy2-230-3-t Rotary Actuators For Butterfly Valves Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Supply Ability
100 Units Per Month

Delivery Time
5 Days

Main Domestic Market
All India

About Belimo Sy2-230-3-t Rotary Actuators For Butterfly Valves

Belimo Sy2-230-3-t Rotary Actuators For Butterfly Valves are available from our company in a wide range. They were made to work with butterfly valves. It is a powerful actuator that offers accurate control over the valve position and can run at up to 95 seconds per second for rotations of 90 degrees. Belimo Sy2-230-3-t Rotary Actuators For Butterfly Valves are used to stop overheating-related damage. In the event of a power outage, this valve enables the valve to be operated manually. These butterfly valves are simple to install and maintain, and they are made to last for a long time with little upkeep.

Stroke Length	4
Voltage	230 V AC
Structure	Control
Power	230V
Torque	90-3500NM
Model Name/Number	SY2-230-3-T Rotary actuators for butterfly valves
Weight	Overview to types
Color	Orange
Pressure	High Pressure
Speed At Rated Load	8.4 in/min
Rated Load	100 lb
Valve Motion	Rotary Motion Valve
Motion Control	Rotary
Brand	BELIMO
