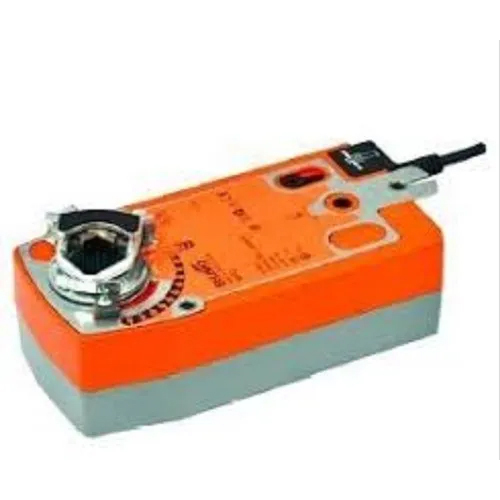

BELIMO NR24A-SR Rotary Actuator
BELIMO NR24A-SR Rotary Actuator

BELIMO NR24A-SR Rotary Actuator

Price 8490 INR/ Unit

MOQ : 1 Unit

BELIMO NR24A-SR Rotary Actuator Specification

  • Connector Type
  • Cable gland
  • Feature
  • Spring return
  • Humidity %
  • Max. 95% r.h., non-condensing
  • Insulation Material
  • Synthetic material
  • Surface Finish
  • Powder coated
  • Mounting Type
  • Universal clamp (for shafts up to 20 mm)
  • IP Rating
  • IP66/67
  • Efficiency
  • High efficiency
  • Shape
  • Rectangular
  • Operating Temperature
  • -30C to +50C
  • Overheating Protection
  • Electronic motor protection
  • Product Type
  • Rotary Actuator
  • Application
  • Industrial
  • Protection Level
  • IP66/67
  • Frequency (MHz)
  • 50/60 Hz
  • Rated Voltage
  • AC/DC 24 V
  • Energy Consumption
  • 3 W (operation), 0.4 W (standby)
  • Output Type
  • Modulating (DC 2...10 V; 4...20 mA)
  • Color
  • Orange
  • Dimension (L*W*H)
  • 182 x 80 x 87 mm
  • Weight
  • Approx. 1.6 kg
  • Input Voltage
  • AC/DC 24 V
  • Size
  • 20 Nm torque
  • Phase
  • Single Phase
  • Material
  • Die-cast aluminium housing
  • Connection Type
  • Cable
  • Manual Override
  • Integrated
  • Running Time (Motor)
  • 150 s / 90°
  • Direction of Rotation
  • Selectable (reversible with switch S2)
  • Cable Length
  • 1 m
  • Control Signal
  • DC 2...10 V, 4...20 mA
  • Gear Material
  • Steel and synthetic
  • Torque
  • 20 Nm
  • Degree of Protection
  • IP66/67
  • Ambient Temperature Range
  • -30°C to +50°C
  • Running Time (Spring)
  • 20 s / 90°
  • Position Feedback
  • DC 2...10 V


BELIMO NR24A-SR Rotary Actuator Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Delivery Time
  • 5-7 Days


About BELIMO NR24A-SR Rotary Actuator

Actuator TypeElectric Actuator
BrandBELIMO
StructureActuator
Model Name/NumberNR24A-SR Rotary Actuator
